Queued Messages View

The Queued Messages view displays all messages that are currently waiting to be sent to trading partners. These messages remain in the queue until they are successfully processed and transmitted. This view allows users to monitor pending messages and manage them if any issues occur.

Understanding the Queued Messages Table

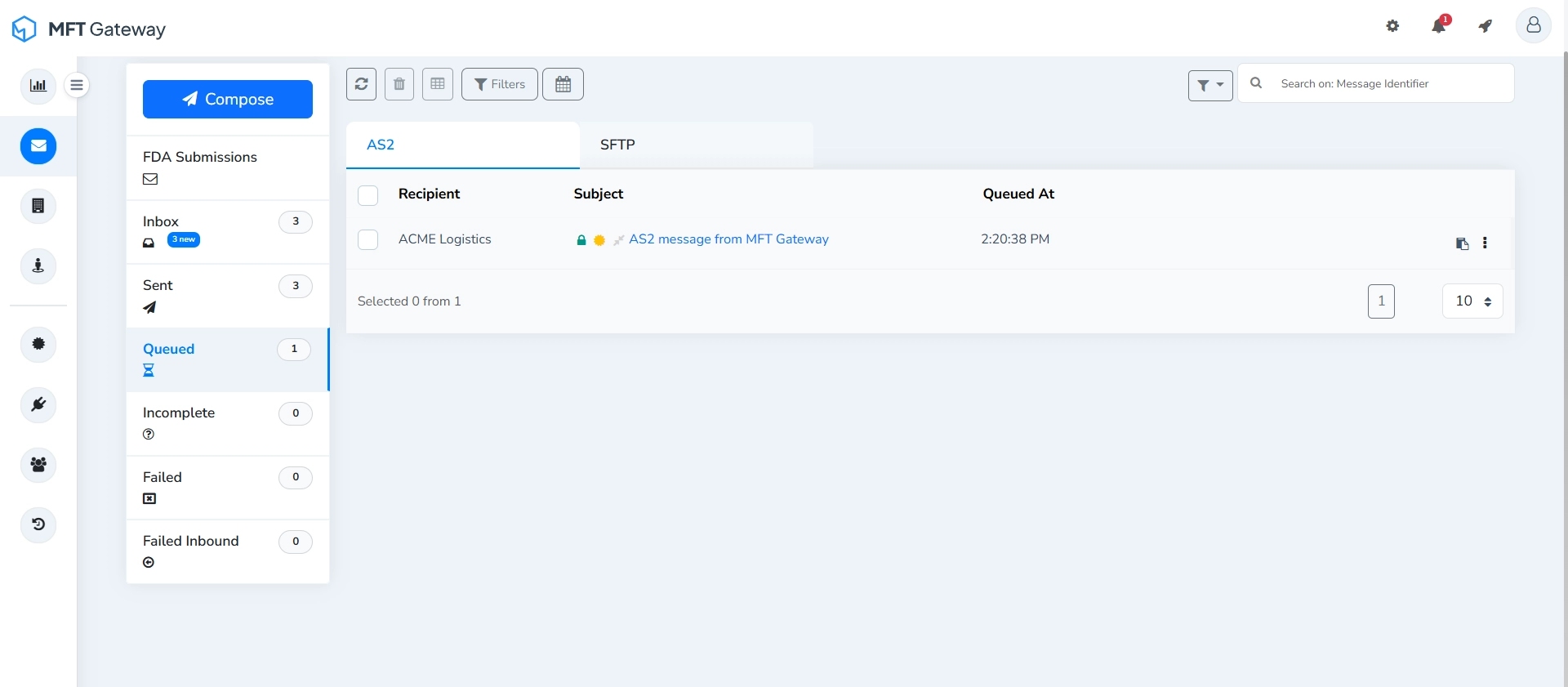

MFT Generator Queued AS2 Messages View

Recipient - The name of the trading partner who will receive the queued message.
Subject - The subject specified when the message was created or predefined from Manage Partner view.
Queued At - The timestamp indicating when the message was added to the sending queue. Messages are sorted by the most recent timestamp.

The below will be available if there’s a retryable failure when sending the message.

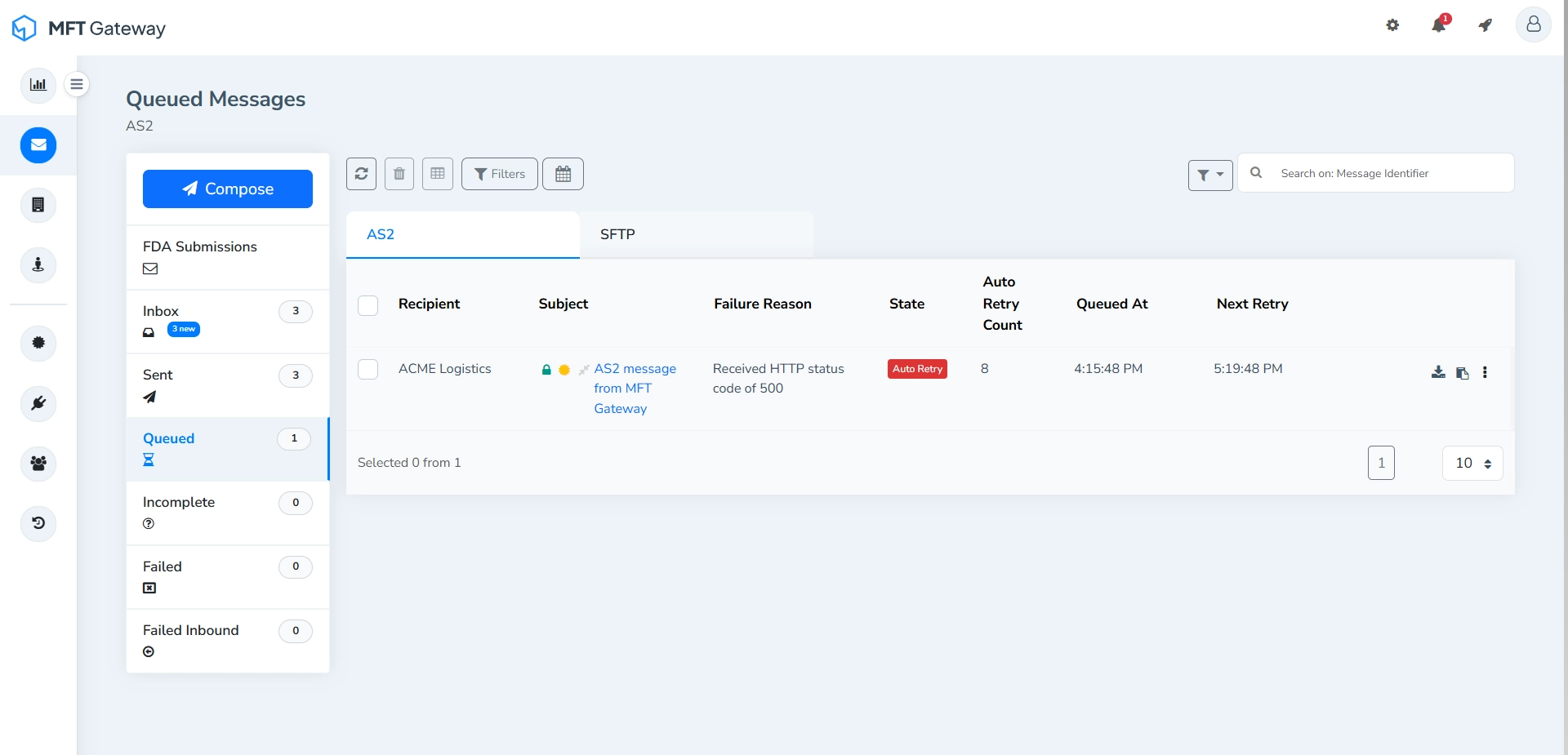

MFT Generator Retryable Queued AS2 Messages View

Failure Reason - A brief message indicating the failure reason.
State - Current state of the message. (Queued, Auto Retry, Manual Retry, Finished)
Auto Retry Count - No. of attempts used so far to resend the failed message with auto retry.
Next retry - The timestamp of the next retry attempt if the message is in “Auto-Retry” state.

Single Message Actions

Each queued message entry provides actions that allow you to manage the message individually.

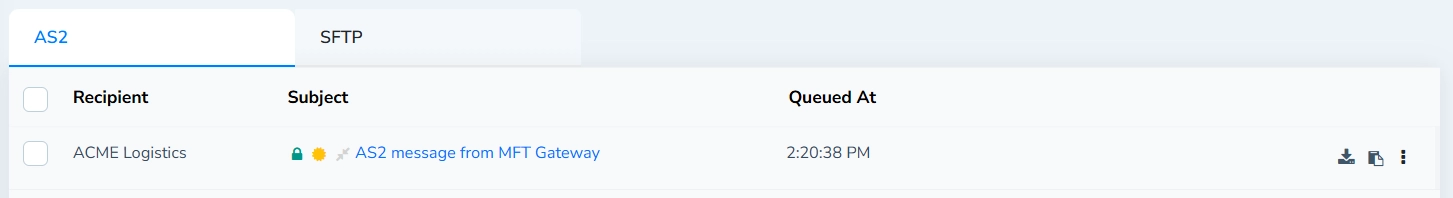

Queued Messages Table Single Entry Action Buttons

Download Attachments

Downloads all attachments associated with the message as a zip file.

Copy ID

Copies the AS2 message ID to the clipboard.

By clicking the more options menu (⋮) you can access additional actions.

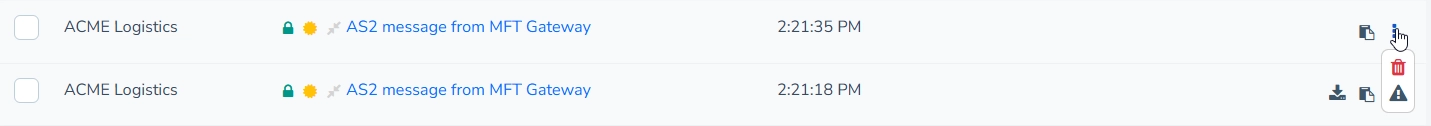

Queued Messages Single Entry Three Dot Menu

Delete

Permanently removes the queued message entry along with the transport headers and the raw message.

View Error Logs

Opens the error logs related to the queued message, allowing you to review details about any issues that occurred during processing.

Stop Auto Retry

Halts any scheduled retry attempts for the message, ensuring it will no longer be automatically retried. You can still choose to retry the message manually if needed.

Force Retry

If the message remains in the queued state for more than 15 minutes, this option is enabled, allowing you to force a retry of the message.

Actions for Selected Message(s)

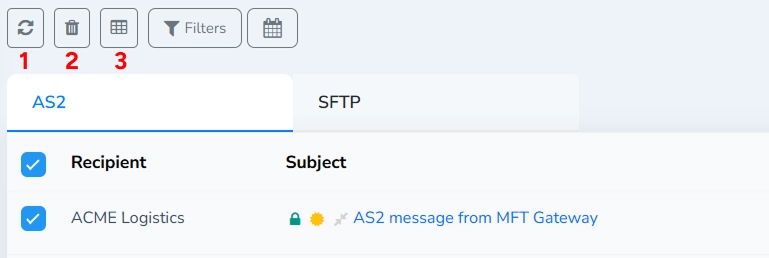

Queued Messages Table Selected Action Buttons

Refresh (1)

Refreshes the queued messages table to retrieve the latest queue status.

When one or more messages are selected using the checkboxes, the rest of the action toolbar becomes active, allowing batch operations on the selected messages.

Delete Selected (2)

Permanently removes all selected messages from the queue.

Export Details (3)

Exports the details of the selected queued messages in CSV format.

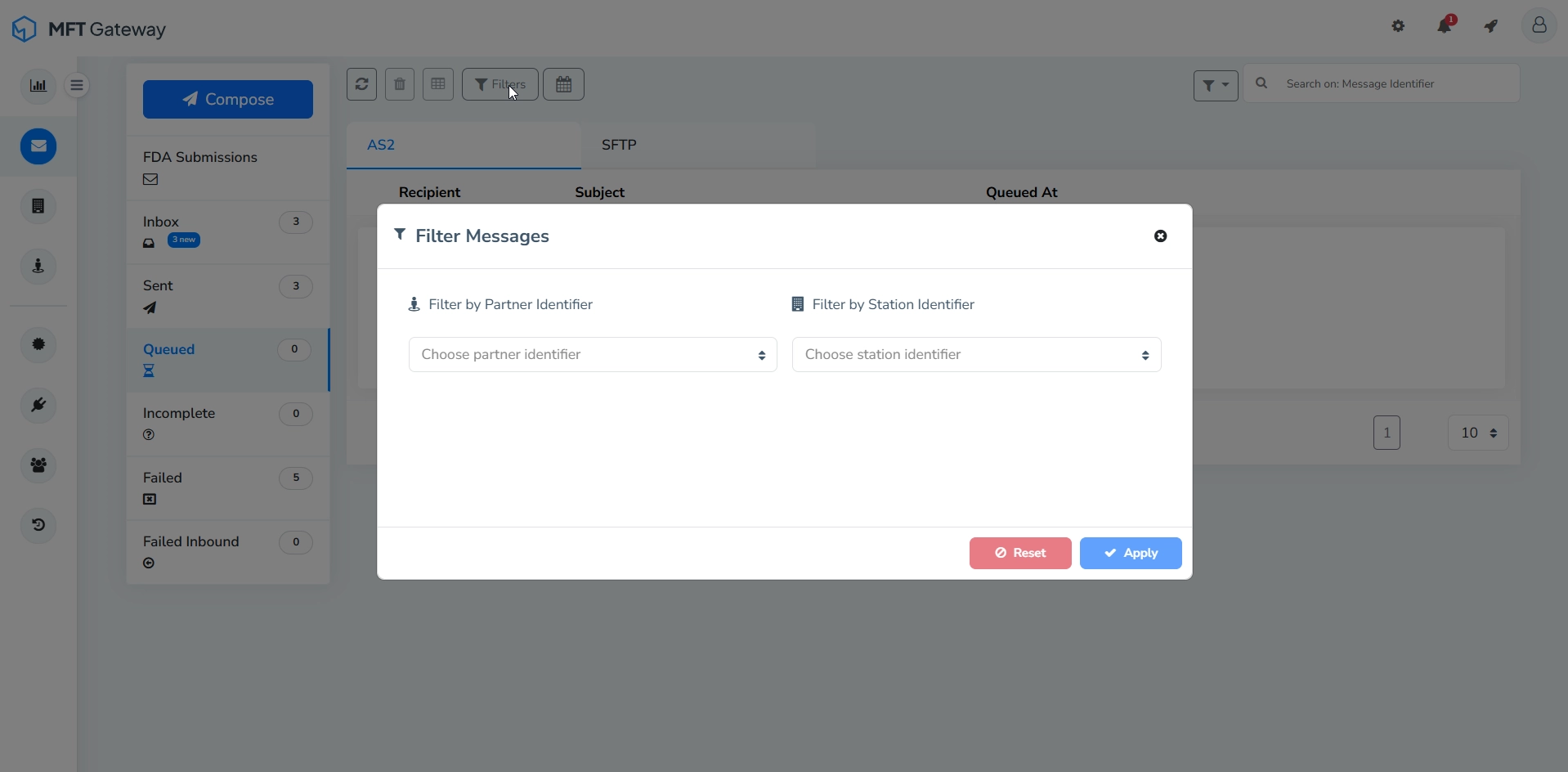

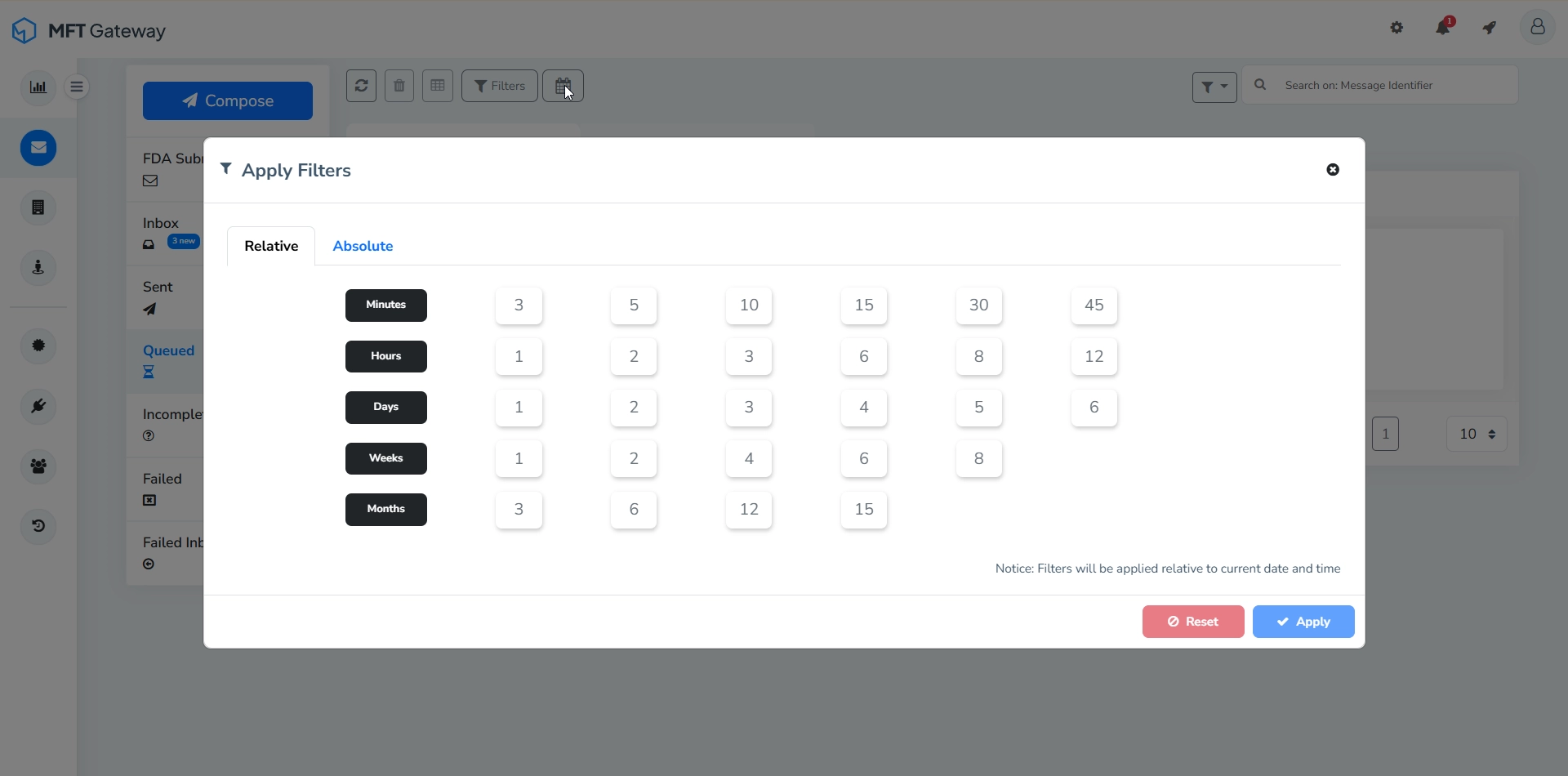

Search and Filters

Search Field

Search queued messages by AS2 message identifier, message subject, or attachment names. Select the search parameter from the dropdown next to the search field.
