Certificate Management

AS2 Gateway Certificate Store allows you to review, generate, renew and manage your key pairs and trusted certificates in one place.

1 Certificate Types

AS2 Gateway has five main certificate types:

STATION: key pairs (private and public keys) assignable to trading stations
PARTNER: certificates (signed public keys) assignable to trading partners for encryption or signature verification
PARTNER_CHAIN: chain certificates, usually belonging to certificate authorities (CAs), as supplementary information for building the certification-path trust anchors for PARTNER certificates
HTTPS: (SSL/TLS) certificates assigned to trading partners’ secure (https://) URLs, for establishing trust when connecting to send outbound messages/MDNs
HTTPS_CHAIN: supplementary CA certificates to provide trust anchors for HTTPS certificates

Last two types are rarely used; only if your partner has an HTTPS endpoint with a certificate issued by someone other than the common, globally trusted CAs.

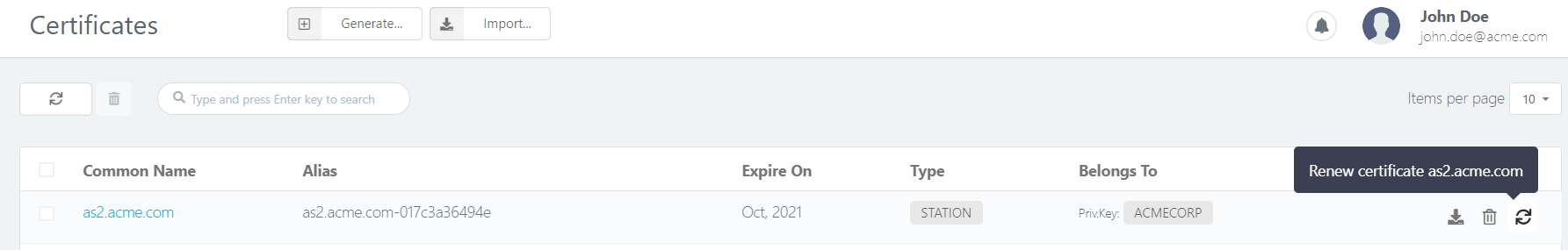

2 Certificate List

The list view offers common details and operations for all certificate types:

Common Name (CN) field of the certificate identifier (distinguished name, DN)
Alias assigned to the certificate, internally on AS2 Gateway
Expires On; expiration date of the certificate
Type; certificate type (as listed earlier)
Belongs To; the set of entities (partners, stations) that are currently using the certificate, along with the purpose; e.g. as a station’s private key (Priv.Key)
Options to export the certificate as:
- a PEM formatted file (ASCII, safe for copy-paste; supported by most systems)
- a ,DER formatted file (binary; some systems would request this format explicitly)

Note: CER and CRT files are also of DER format; if your partner has requested for a file with one of these extensions, often it would be enough to rename (change extension) of the downloaded .der file, as .cer or .crt.

For STATION certificates (which are actually key pairs), there are additional export options:

To obtain the full key pair (certificate and private key), export the key store using the JKS (Java Keystore) or P12 (PKCS#12) formats.
To renew the certificate through an external CA, use the CSR (certificate signing request) generation option. You can share the downloaded .csr file with your CA in order to get the new certificate issued, and then assign it back to the existing STATION entry.

Note: .p12 is more standardized and widely supported. Check out this reference for more details on the differences between .jks and .p12.

3 Certificate Management Operations

3.1 Adding a Trusted Chain Certificate

For many operations like signature verifications, the receiver should be able to build a trust anchor for the sender’s certificate. As explained before, this usually requires that the CA that issued the partner’s certificate, should be trusted at the other end.

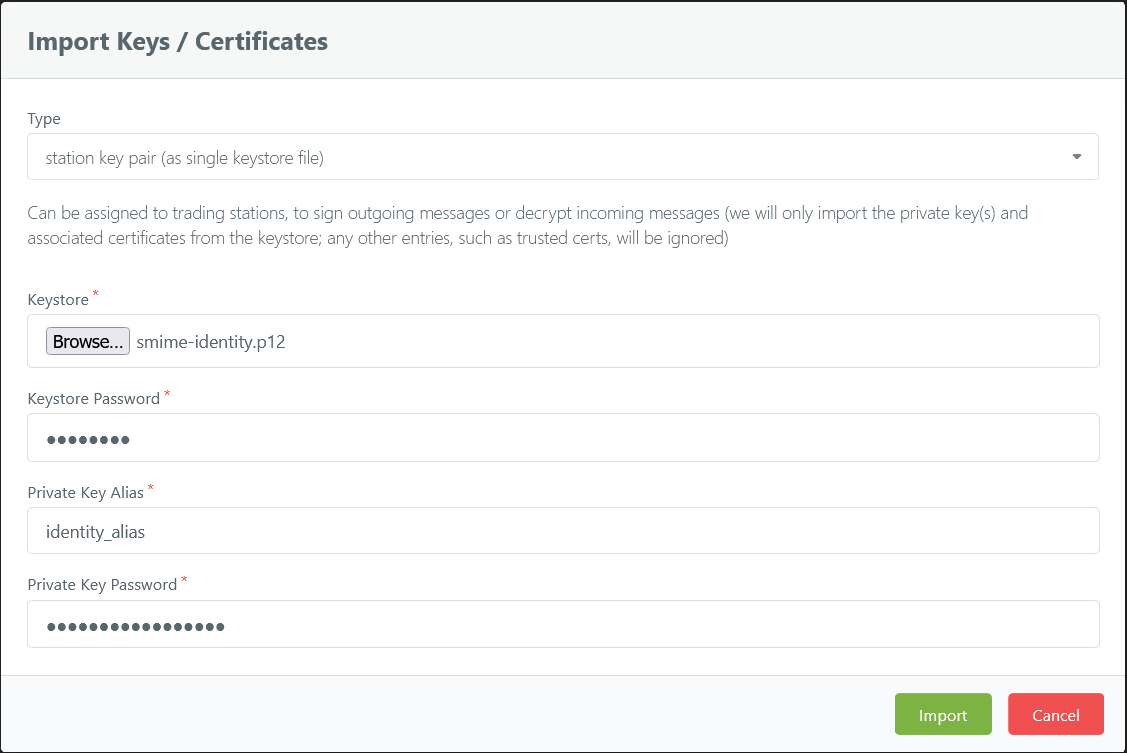

If you see errors like “trust anchor for certification path not found”, it indicates that your partner’s CA is missing in your certificate store. In such cases you can simply add the corresponding CA certificate to your store via the Import option. Once uploaded, the certificate will be saved with type PARTNER_CHAIN, automatically including it in the trusted certificates’ collection.

Note:

Only certificate files/chains of PEM (.pem) or DER (.der, .cer, .crt) format are expected; do not try to upload complete key stores (.jks, .p12 etc.) or any other file formats.
- If you are still in the testing/configuration phase, and you uploaded the certificate to fix a failure on an incoming message, you can replay the message to confirm that it gets processed correctly - without waiting for your partner to send another message.

3.2 Generating a New Key Pair (`STATION` Certificate)

You can generate a new key pair (which can later be assigned to a station) using the Generate button.

The process is similar to generating a new keypair for a new trading station. You would provide:

a common name (CN)
identification details (organization/unit, address etc.)
a length for the key being generated
a validity period for the certificate (number of years forward); validity (NotBefore) starts from the actual time of generation.
a password for securely storing the generated private key

3.3 Renewing a (`STATION`) Certificate

A certificate may need to be renewed if:

it has expired (or is about to expire), or
it has to be reissued (e.g. converting a self-signed certificate into a CA-issued, trusted one)

Note: In any case, your partner(s) need to configure the renewed certificate on their end; otherwise you will not be able to decrypt messages that they send, and they will not be able to verify message/MDN signatures generated by you. Usually this configuration update has to be performed in a mutually agreed time frame, to keep both ends consistent and prevent breaking of live traffic.

The ‘Renew certificate’ button displayed for STATION type certificates, allows you to perform a renewal in two ways:

3.3.1 Self-signed

Here, the public key of the certificate is signed using its own private key (using the same distinguished name (DN) attributes that are currently assigned to that certificate). This results in a self-signed certificate, whose validity (NotBefore and NotAfter) is set to the timestamps that you specify during renewal.

Note:

If you set NotBefore to a future timestamp, the new certificate will not be usable (valid) until that time. Please double-check and refine the automatically selected timestamp as appropriate.
Just like any other self-signed certificate, the renewed certificate will need to be installed and trusted on your partner’s end before AS2 communication can be carried out successfully.

3.3.2 CA-issued (trusted)

Here you can merge a trusted (CA-issued) certificate into an existing keypair. This is useful if you decide to convert an existing self-signed keypair (which is already actively being used) into a trusted set, most commonly due to security/compliance requirements of trading partners/systems.

Because a CA is involved, the renewal flow here is not contiguous:

AS2 Gateway generates a certificate signing request (CSR) file for the key pair (via the Export Now button on the dialog, or the .csr download option on the certificate list entry).
You submit the CSR file to the CA, who then issues a trusted certificate for it.
You upload and submit the received certificate via the Renew button on the renewal dialog; AS2 Gateway associates the certificate with the original key pair.

Step 3 can be performed separately (independent of the CSR download).

Note: Currently, a certificate renewal immediately affects the corresponding trading station’s AS2 traffic. We are working on providing a schedule option for certificate updates; when this becomes available, you will be able to set/configure exactly when the renewed certificate will get applied to production traffic, in order to coordinate the update with your trading partner easily and automatically.

4 Schedule Certificate Renewals

4.1 Schedule (`Partner`) Certificate Renewals

To schedule partner certificate renewals, first go to the partners view using the ‘Partners’ icon on the left navigation menu. Then click the ‘Schedule Certificate Renewals’ button on the partner card of the relevant partner whose certificates you need to schedule.

In the Schedule Partner Certificate Renewal popup, you can set up the activation for either a partner encrypt certificate, a partner sign certificate, or both. You can choose an already available certificate from the certificate store or upload a new certificate by toggling on the ‘Upload New’ option. To schedule a sign certificate, ensure the ‘Schedule sign certificate’ toggle is enabled. In the ‘Activate On’ field, specify the date and time for the certificate change. Please note that the time must be in your local time zone.

Schedule Partner Certificate Renewals View

Click the Save button to submit the form.

Once the certificates have been scheduled, you will land back in the partner list view. A notification banner will appear in both the Manage Partner view and the Schedule Certificate popup, indicating the scheduled certificate and scheduled time. You will have the option to cancel or change the scheduled activation.

AS2 Gateway will automatically switch the encryption/sign or both certificate(s) of the relevant partner to the new certificate(s) at the specified date and time without any manual intervention. Until then, the current encryption/sign certificate will remain in use, and upon activation, this old certificate will be set as the fallback certificate until expiration, with the option to remove it from the certificate schedule popup when needed.

Note: Please note that for incoming messages, if there is a valid backup certificate, signature verification is allowed through either the assigned partner sign certificate or the backup partner sign certificate until its expiration, unless it is manually removed. This functionality is useful when a partner rotates their certificate ahead of schedule or experiences delays in updating certificates, ensuring uninterrupted communication.

4.2 Schedule (`Station`) Certificate Renewal

To schedule a certificate renewal for a station, navigate to the Stations page from the navigation menu. Then click on the ‘Schedule Certificate Renewal’ button in the station card view of the relevant station.

Unlike partner certificate scheduling, you cannot upload new key pairs here. Instead, you must select an existing station certificate from the keystore and specify the activation time.

Schedule Station Certificate Renewal View

Upon scheduling, a notification banner will appear in both the Manage Station view and the Schedule Station Certificate Renewal popup. This banner displays the scheduled certificate and time and provides an option to cancel the scheduled activation.

Once the scheduled certificate is activated, the old certificate will be set as the fallback station certificate if it has not expired, and you can remove it manually at any time from the Schedule Certificate Renewal popup.

Note: For incoming messages, if there is a valid backup certificate, the station will use either the assigned certificate or the backup certificate to decrypt the message. However when signing an outgoing AS2 message or MDN, the station uses the currently assigned certificate; giving an authentication error on the partner’s side if they still use the old certificate.
